Where: R10 52a Market Place, Leicester, LE1 5GF
When: Wednesday 18th September at 7 PM – 9 PM
Leicester Ableton User Group proudly presents: Tobi Hunke, who runs AbletonDrummer.com as he explores different aspects of how Ableton Live is and can be used by drummers with showcasing practical examples with a focus on live performance including the subjects:
Recording and Audio Processing live
Playback/Backing Track Operations
Drum Module / Drum Sound Engine
Midi Effect Engine – Tonal Sequences/DMX-Lights/Video/Trigger whatever…
Tobi Hunke, who is born and living in Germany was starting to tour with bands at the age of seventeen and has played numerous live shows and in various recording sessions. While his studies in England he started to develop an interest in performing electronic music and into working with Ableton Live. He is now mainly working as a drum teacher and Ableton Live instructor with the focus on combining the two. He has developed an online presence through blogging and building up an online community for drummers using Ableton Live, which has gained a big reputation around the globe. Tobias Hunke developed online educational resources as well as providing and programming plug ins for drummers to combine and translate (physical) drumming into the digital world.
AbletonDrummer – https://wwwfacebook.com/groups/abletondrummer
ALSO ON THE NIGHT:
Megan Timings – Creating Chip Tune Pop with Ableton Live.
James Kelly – Creating Impulse Responses with M4L Convolution Reverb Pro.

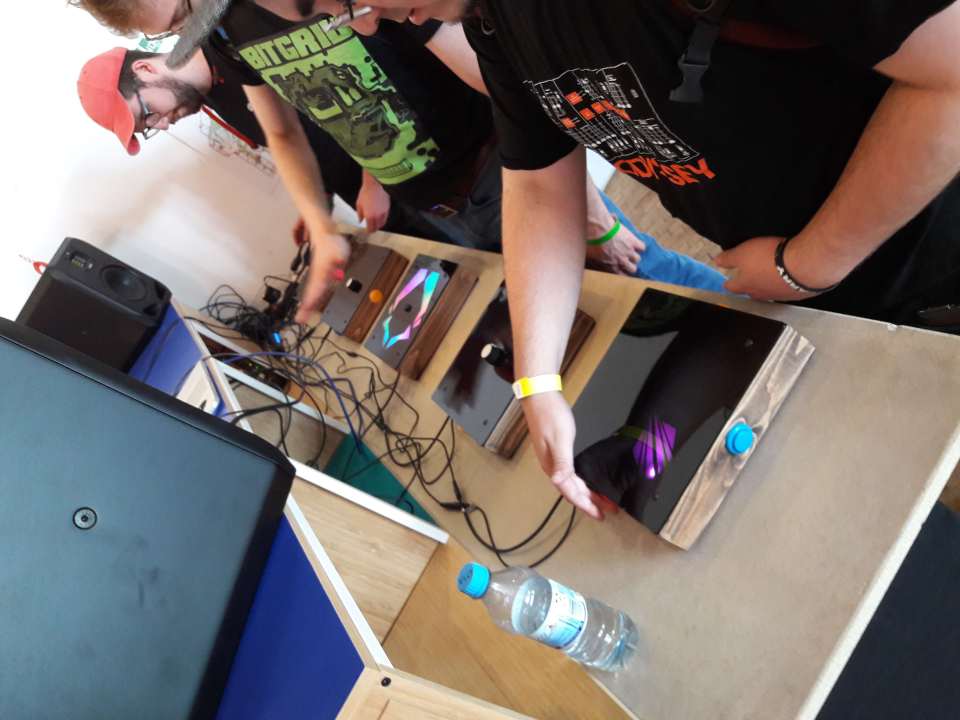

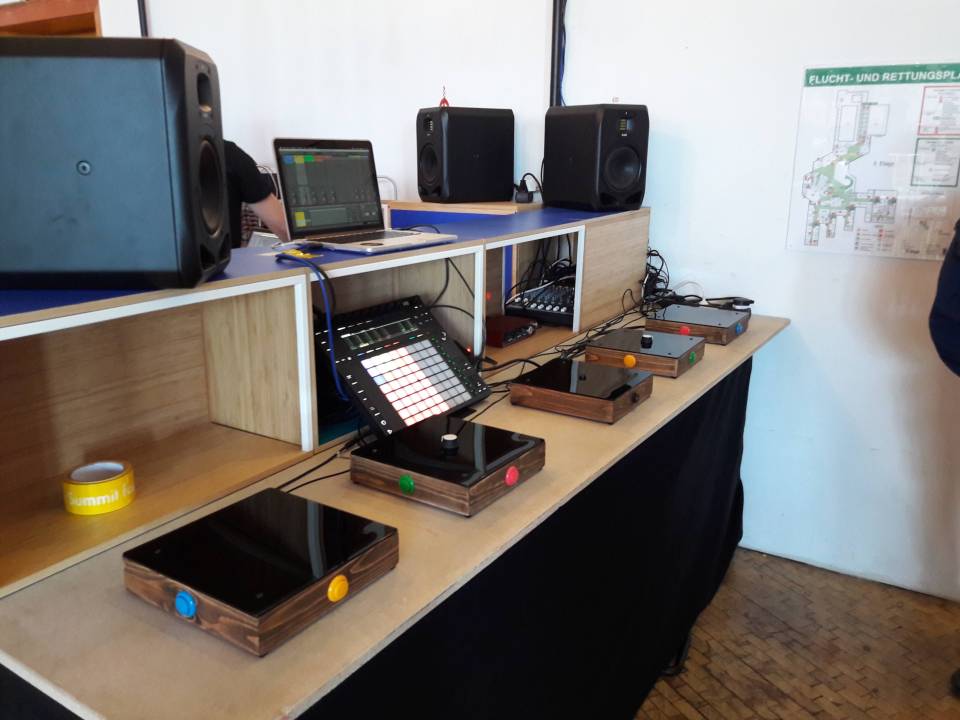

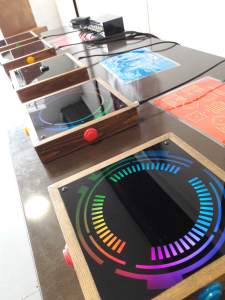

New versions of the MINI PRZM’s are now ready and out in the world. Based on the same technology as the original PRZM, each player now controls their own mini PRZM instrument. Four of the devices have four arcade style buttons located on each side and control a specific instrument or musical layer (drums, bass, chords etc.). The final device has proximity and ultrasonic sensors that react to hand gestures and control master effects.
Together the PRZM project creates a powerful jam station for kids (and big kids) and comes pre-loaded with a range musical settings.
Each PRZM is based on the Arduino Pro Micro to process button presses and sensor inputs. The LED lights are based on the Adafruit Neo Pixel Rings which are also running from the Pro Micro. The top section is made with diffused black/transparent acrylic with a custom laser cut vinyl for the HUD graphics.
Each Pro Micro sends its sensor inputs to a master hub based on the Arduino Leonardo which essentially functions as a receiver for each of the MINI PRZM’s and converts everything into a single message stream connected to a computer. The Leonardo is coded to operate as a class-compliant MIDI device.
All the audio is generated in Ableton Live which receives control messages from the master PRZM HUB.
Each PRZM controls a sampler instrument with a music loop loaded in. Different buttons will trigger different sections of the loop allowing players to re-organise the loop and jam with it.
Following the success of the PRZM (Animated MIDI Lightbox) I am proud to present the Mini PRZMs. First previewed at Superbooth in May 2018, the Mini PRZMs draw on the same concept as the PRZM but with a dedicated instrument and control box for each player. Powered by Arduino and Ableton Live, PRZM offers a unique way for people to interact with and make music.
More details on the design and development coming soon.

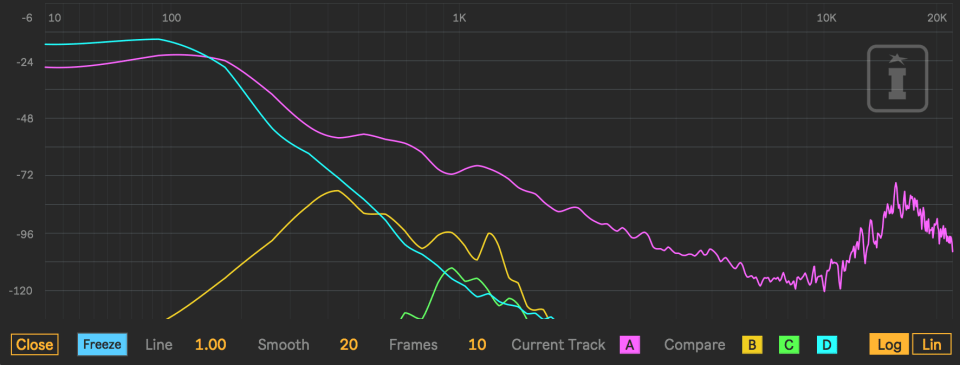

Following the success of the Multi Analyser, I am proud to announce the Multi Analyser XL.
Available from Isotonik Studios.
New features include:
- Large floating window (stays visible while selecting different tracks).
- Channel routing options per track:
- Select from Pre FX, Post FX or Post Mixer to analyse tracks.
- Select Left, Right or Summed output of tracks to analyse.
Multi Analyser XL makes use of a new feature of Live 10 whereby Max for Live devices now support multiple audio inputs and outputs. Inputs and outputs can be accessed via the track’s input and output channel choosers. Devices can also be routed to arbitrary tracks via the Live API.
This means that as well as hard routing a tracks output to a Max for Live device or routing content of a Max for Live device out to dedicated track input, we can also grab the output of a track and send it into in Max for Live Device without disrupting its current signal flow (i.e. to Master). This is great for analysis and measurement tools but also it allows Max for Live devices to have side-chaining functionality, which was previously not possible.
Multi Analyser XL requires Ableton Live 10 and a version of Max for Live will also be needed either with Ableton Live 10 Suite or Ableton Live 10 Standard with the Max for Live extension. Multi Analyser XL will not work in Live 9.
Available from Isotonik Studios.
For more information on the operation and development of Multi Analyser click here.

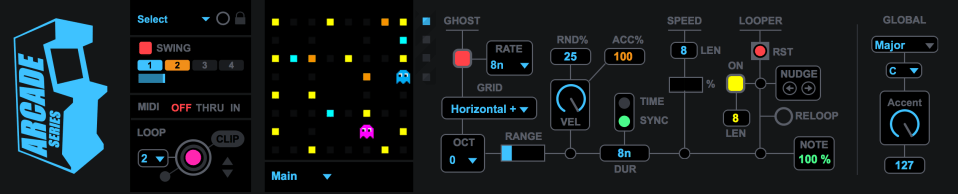

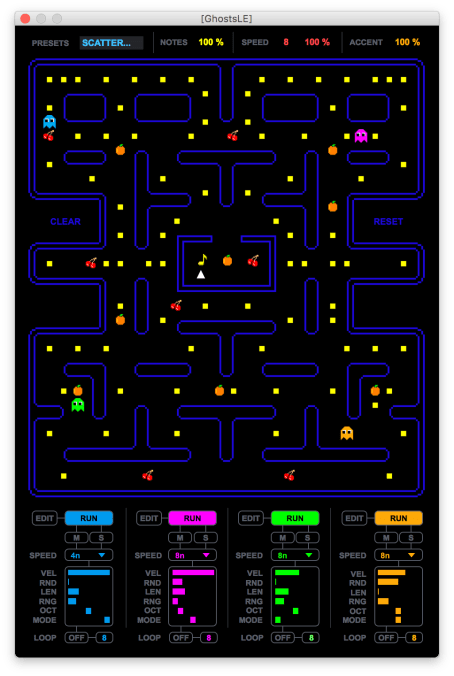

GhostsLE is a random looping melodic sequencer inspired by the classic arcade game PacMan built in Max for Live.
Download the GhostsLE user manual.
Device available for FREE from Isotonik Studios.

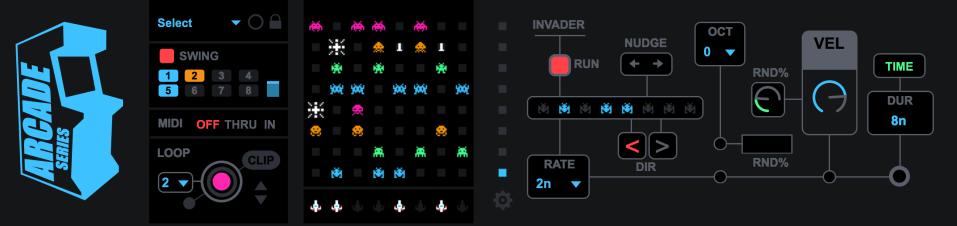

Space Invaders is a Max for Live rotating pulse generator designed specifically for triggering drum machines and is inspired by the classic arcade game. The device is fully compatible and controllable with 8×8 grid based controllers (Push, Launchpad and Machine Jam).
Download the Space Invaders user manual.
Device available from Isotonik Studios.
